Switches/Controllers

Enhanced-DFC1.5_front_570x570
Enlarge
Enhanced-DFC1.5_front_570x570
  • DFC1.5
  • DFC1.5 Side Controller and Float
  • VSC1.5
  • VSC1.5 Side Controller and Float
  • TSC1.5
  • Enhanced-DFC1.5_front_570x570

  • DFC1.5

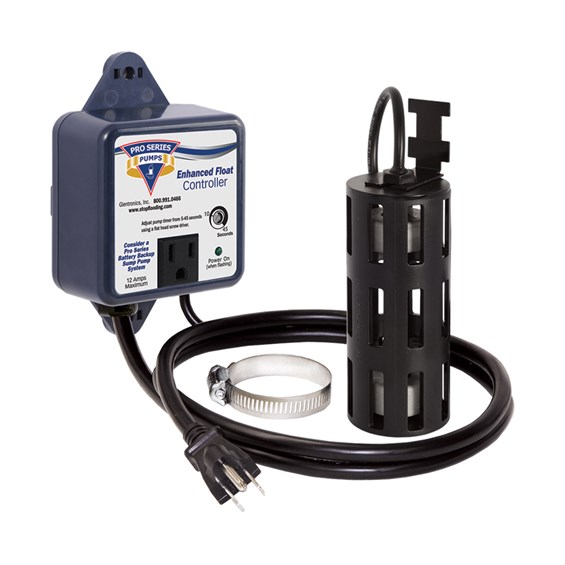

  • DFC1.5 Side Controller and Float
  • VSC1.5

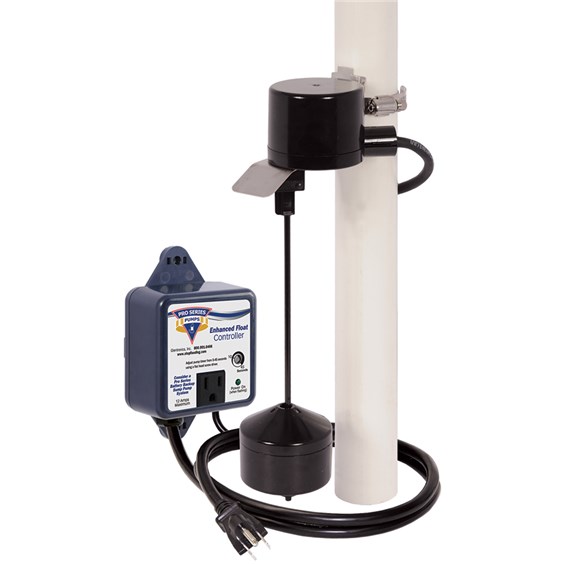

  • VSC1.5 Side Controller and Float
  • TSC1.5
  • Enhanced-DFC1.5_front_570x570

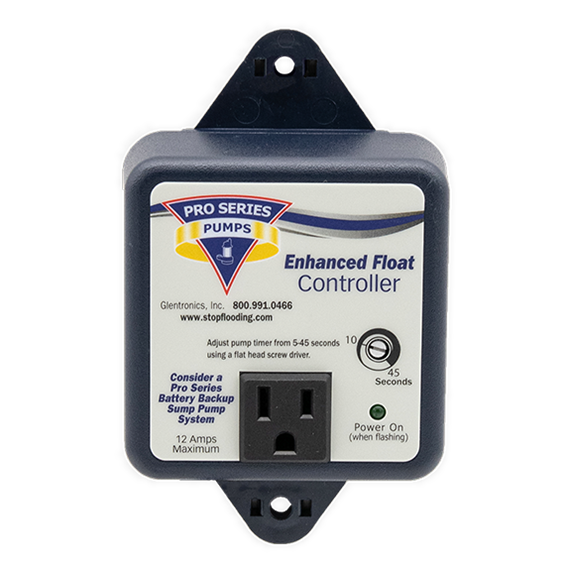

Enhanced Controller

Controller Features:

  • Activates pump weekly to exercise and extend pump life
  • LED confirms controller has power
  • Pump run time is adjustable

 PDF_download_icon_v2 Download: Switches and Controllers



Where to buy

COMPATIBLE
SWITCHES:		 ENHANCED CONTROLLER
MODEL NO.
Tether Switch TSC1.5
Vertical Switch VSC1.5
Dual Float Switch DFC1.5





Models Available

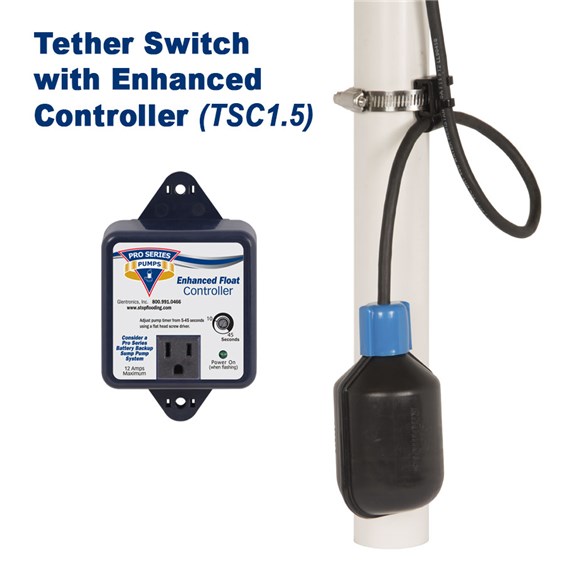

TSC1.5 - Tether Switch and Enhanced Controller

  • Can be used in clear water and sewage applications
  • Narrow angle in order to reduce run time
  • Run time adjustable
  • Activates pump at about 15° and turn off at about -15°
  • Detachable float switch allows the wire to feed through the pit cover for easy installation and maintenance
  • Mounts to discharge pipe with included stainless steel hose clamp
  • Activation level is adjustable

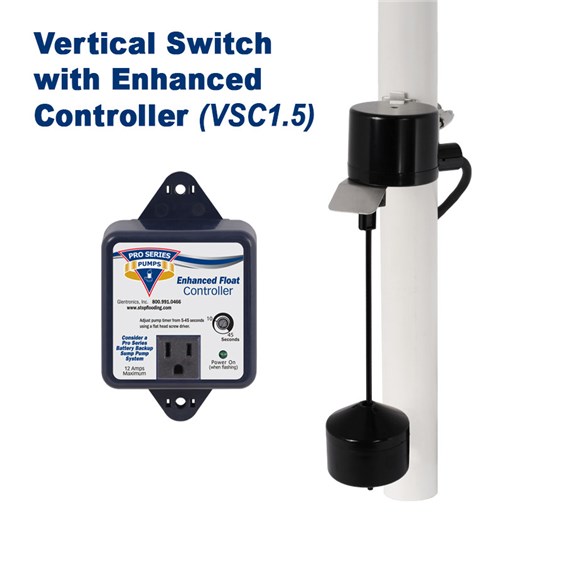

VSC1.5 - Vertical Switch and Enhanced Controller

  • Can be used in clear water and sewage applications
  • The internal switching mechanism has sealed gold contacts for reliable high cycle operation
  • Detachable float switch allows the wire to feed through the pit cover for easy installation and maintenance
  • Mounts to discharge pipe with included stainless steel hose clamp
  • Activation level is adjustable

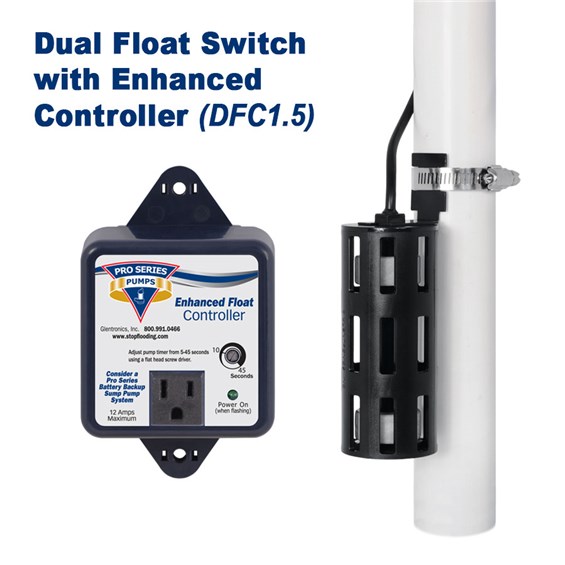

DFC1.5 - Dual Float Switch and Enhanced Controller

  • Can be used in clear water applications
  • Two micro reed activated floats for added reliability
  • Protective cage prevents debris from interfering with floats
  • Easy installation
  • Solid top keeps out sand and dirt
  • Vented, curved bottom prevents debris build-up under the float
  • Detachable float switch allows the wire to feed through the pit cover for easy installation and maintenance
  • Mounts to discharge pipe with included stainless steel hose clamp
  • Activation level is adjustable

Switch Comparison

Features Standard Controller
or Switch Only
    DFC1    /   VS    /    TS    		Enhanced Controller
DFC1.5 / VSC1.5 / TSC1.5		 Deluxe Controller
DFC2 / VSC2 / TSC2
Includes Dual Float Switch Dot Dot Dot
Includes Vertical Switch Dot (Switch only) Dot Dot
Includes Tether Switch Dot (Switch only) Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)

USB Data Port (Ability to remotely
notify which alert has activated or
what maintenance might be needed)

     Dot
Remote Terminal (Ability to remotely
notify of a problem or needed
maintenance)		     Dot
Float switch can be unplugged from
controller for easy installation         		   Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds
after the water falls		   Dot Dot
Activates pump weekly to exercise and
extend pump life		   Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   All switches include manual and stainless steel hose clamp
