Sump Pumps

S3033 NS S3050 NS
Enlarge
S3033 NS S3050 NS

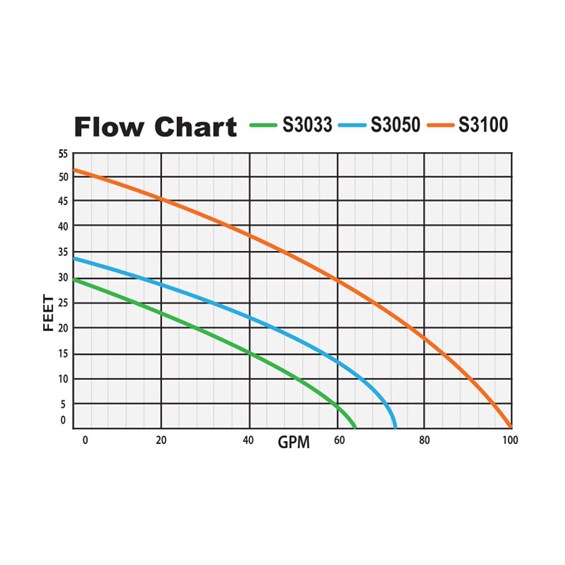

  • Flow Chart S3 Series

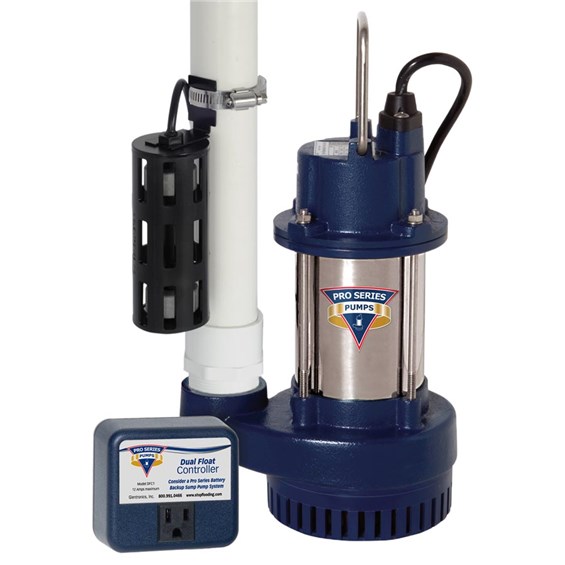

  • S3033 DFC1

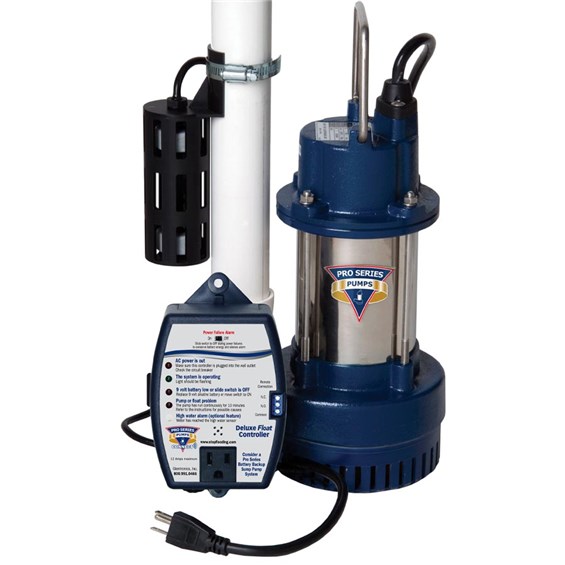

  • S3033 DFC2 CONNECT

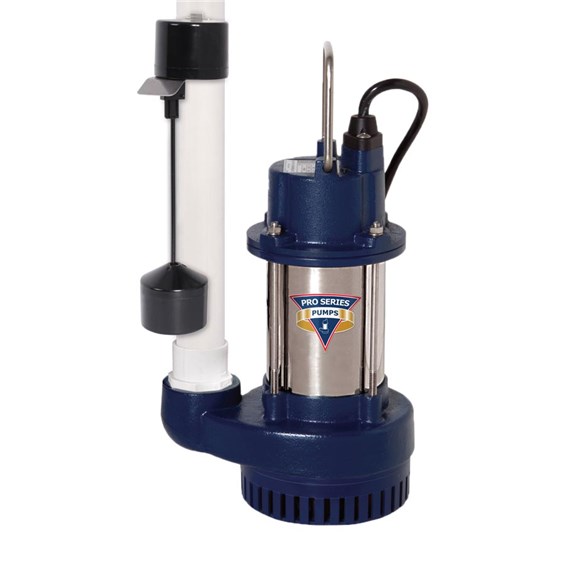

  • S3033 VS

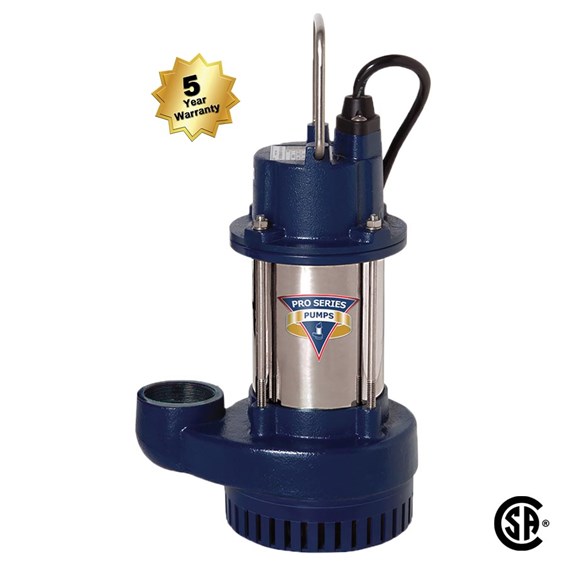

  • S3033 NS S3050 NS

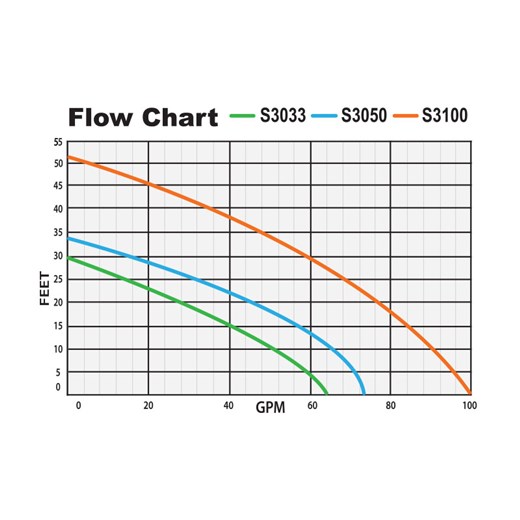

  • Flow Chart S3 Series
  • S3033 DFC1
  • S3033 DFC2 CONNECT
  • S3033 VS
  • S3033 NS S3050 NS

S3 Series

  • Cast-iron/stainless-steel construction
  • Available pumps:
    ⅓ HP, ½ HP and 1 HP
  • Energy-efficient Permanent Split Capacitor (PSC) motor
  • Premium pump construction
        -  Water cooled motor (no cooling oil)
        -  Upper and lower sealed ball bearings
              for ultra-quiet operation
        -  Stainless-steel fasteners for long life
        -  Dual carbon / ceramic seals plus
              (1) Buna-N-Seal
        -  Thermally protected
  • Continuous-duty rated
  • Will fit in 10” diameter sump pit
  • 5-year warranty when purchased from and installed by a contractor; otherwise warranty is 3 years

COMPATIBLE SWITCHES:

Dual Float Vertical Float Tether Float
DFC1 VS TS
DFC1.5 VSC1.5 TSC1.5
DFC2 VSC2 TSC2
DVSA-DF** DVSA-VS**



*Based on an average sump pump run time of five minutes per hour for one year. The estimated average of a HP shaded pole motor is 9.5 Amps. Average electric cost per kilowatt-hour is $0.12

**DVSA-DF and DVSA-VS are not compatible with the 1 HP S3100.

Specifications

  S3033 S3050 S3100
Motor - HP 1/3 HP 1/2 HP 1 HP
Flow @ 10 ft. GPH (3 M.) 3,000 GPH 3,900 GPH 5,520 GPH
Flow @ 10 ft. GPM (3 M.) 50 GPM 65 GPM 92 GPM
Max. Head 30' / 9.1 m 33’ / 10.0 m 52’ / 15.8 m
Pump Discharge 1.5" 3.8 cm 2” / 5.1 cm 2” / 5.1 cm
Amps. @ 10 Ft. Total Head 4.0 Amps 4.3 Amps 11.5 Amps
Weight 20 lbs. / 9.1 kg 24 lbs. / 10.9 kg 46 lbs. / 20.9 kg
Width 7.9” / 20.1 cm 8.5” / 21.6 cm 11.0” / 27.9 cm
Depth 5.3” / 13.5 cm 6.3” / 16.0 cm 7.7” / 19.5 cm
Height 13.0” / 33.0 cm 13.4” / 34.0 cm 18” / 45.7 cm

Mix and Match

We want to provide our customers every option possible, so we’ve come up with two ways to order. You can order using our “Mix and Match” method or select a pre-packaged pump with a switch included. This allows you the ability to have not only the quality pump you need but, the features and technology you want to go with it.

Option 1: Mix and Match – Order a pump and a switch as separate items

  • The pumps and switches are purchased as separate items, then combine to complete the system to meets your wants and needs
  • Best way to allow for many options
    • Select a pump, based on capacity, warranty or build materials
      • Example: the S3033-NS, a 5 year warranty, high capacity pump with No Switch
    • Then, select a switch to pair with it based on the features
      • Example: the DFC2, a Dual Float Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts



 Option 2: Pre-Packaged System – Order the pump and switch together in one box

  • Order any pump with the switch already packaged in a single carton, ready for delivery
    • Example: The S2033-VSC2, is a 4 year warranty, all cast iron pump and Vertical Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts

Models Available

Switch Options S3033
1/3 HP Pump
S3050
1/2 HP Pump
S3100
1 HP Pump

NS
Pump, with no switch


S3033-NS

S3050-NS

S3100-NS

DFC1
Dual float switch with standard controller


S3033-DFC1

S3050-DFC1

S3100-DFC1

DFC1.5
Dual float switch with enhanced controller


S3033-DFC1.5

S3050-DFC1.5

S3100-DFC1.5

DFC2
Dual float switch with deluxe controller


S3033-DFC2

S3050-DFC2

S3100-DFC2
VS
Vertical switch

S3033-VS

S3050-VS

S3100-VS
VSC1.5
Vertical switch with enhanced controller

S3033-VSC1.5

S3050-VSC1.5

S3100-VSC1.5
VSC2
Vertical switch with deluxe controller

S3033-VSC2

S3050-VSC2

S3100-VSC2
TS
Tether switch

S3033-TS

S3050-TS

S3100-TS
TSC1.5
Tether switch with enhanced controller

S3033-TSC1.5

S3050-TSC1.5

S3100-TSC1.5
TSC1.5
Tether switch with enhanced controller

S3033-TSC2

S3050-TSC2

S3100-TSC2

Switches and Controllers Comparison

Features Standard Controller
or Switch Only
    DFC1    /   VS    /    TS
Enhanced Controller
DFC1.5 / VSC1.5 / TSC1.5
Deluxe Controller
DFC2 / VSC2 / TSC2
Includes Dual Float Switch Dot Dot Dot
Includes Vertical Switch Dot (Switch only) Dot Dot
Includes Tether Switch Dot (Switch only) Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)


USB Data Port (Ability to remotely
notify which alert has activated or
what maintenance might be needed)

    Dot
Remote Terminal (Ability to remotely
notify of a problem or needed
maintenance)
    Dot
Float switch can be unplugged from
controller for easy installation
  Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds
after the water falls
  Dot Dot
Activates pump weekly to exercise and
extend pump life
  Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   All switches include manual and stainless steel hose clamp

Construction

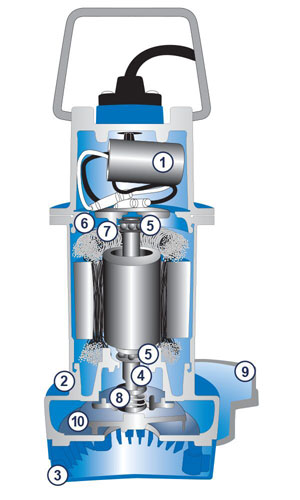

Pump Diagram Pump Components
AC-pump-cutout-drawing-S3-Cutout-with-numbers_preview 1.  Permanent Split Capacitor (PSC) motor increases energy-efficiency
2.  Cast iron/stainless steel housing
3.  Non-corrosive polypropylene strainer
4.  Stainless steel shaft and fasteners won't rust
5.  Upper and lower sealed ball bearings
6.  Water cooled
7.  Thermally protected
8.  Two carbon ceramic shaft seals plus (1) Buna-N seal
9.  1-1/2" outlet (S3033)
     2" outlet (S3050 / S3100)
10. Polycarbonate impeller
