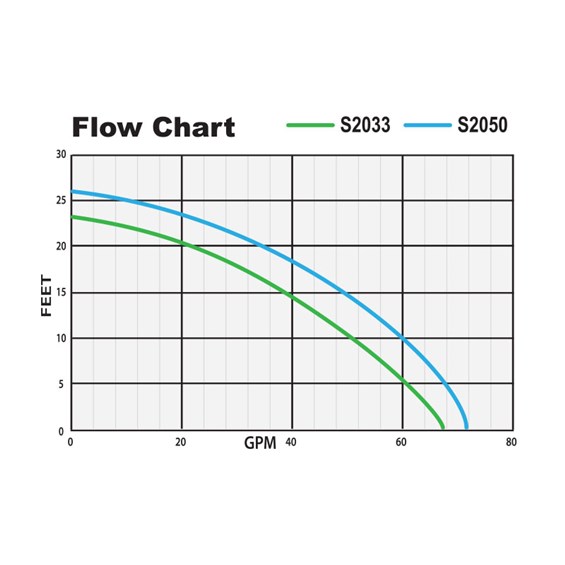

  • Flow Chart S2 Series

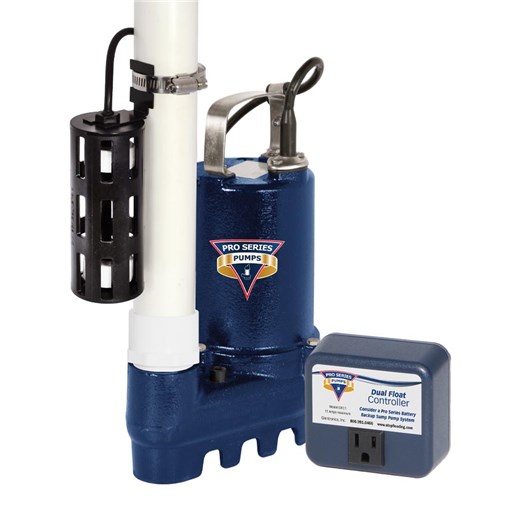

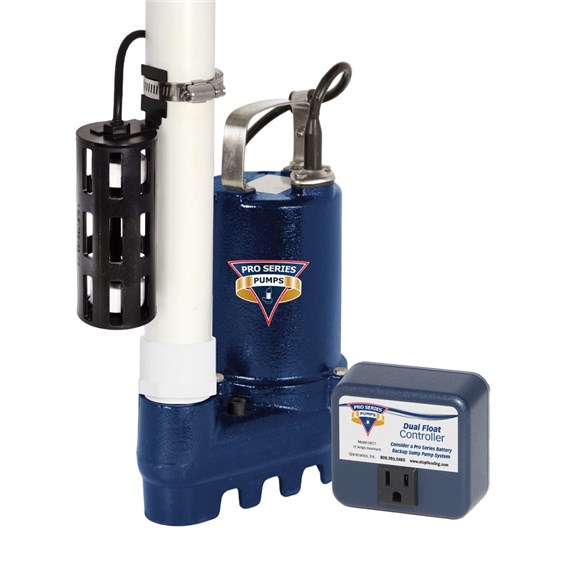

  • S2 DFC1.0

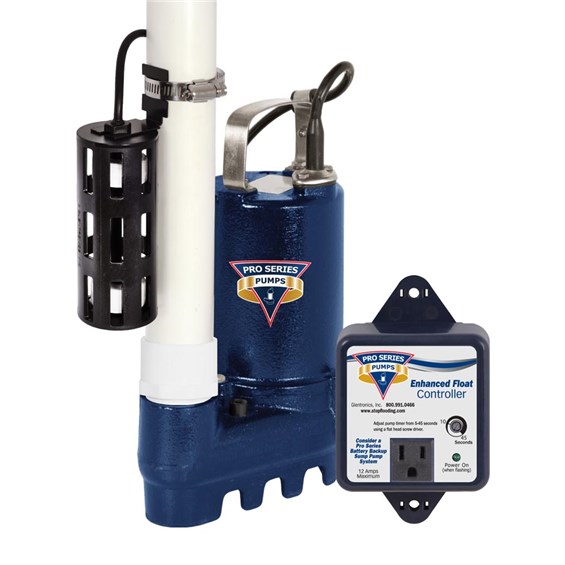

  • S2 DFC1.5

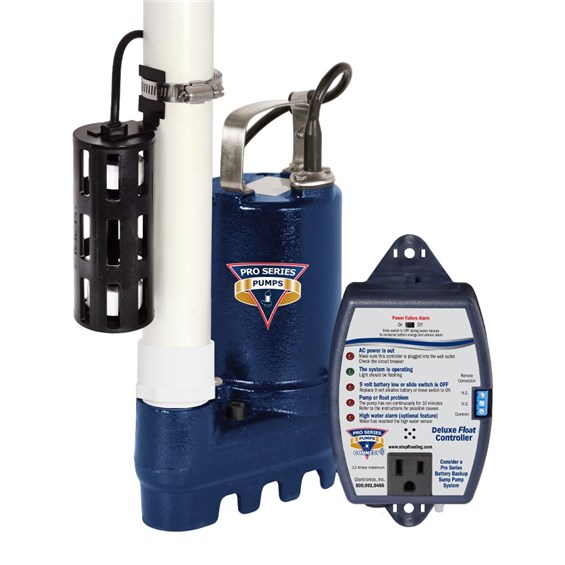

  • S2 DFC2

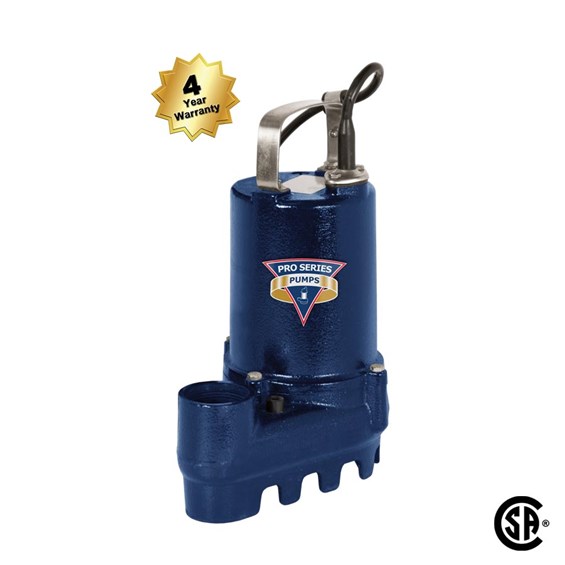

  • S2 Series NS

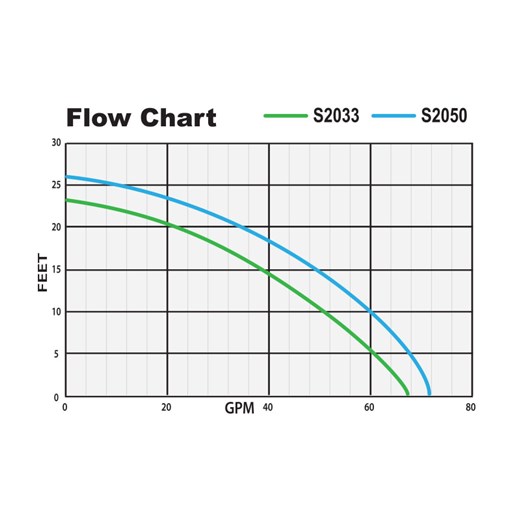

  • Flow Chart S2 Series
  • S2 DFC1.0
  • S2 DFC1.5
  • S2 DFC2
  • S2 Series NS

S2 Series

  • All cast iron construction
  • Available pumps:
    1/3 HP and 1/2 HP
  • Energy efficient permanent split capacitor (PSC) motor
  • Premium pump construction
        -  Cast iron vortex impeller
        -  Upper and lower sealed ball
              bearings for ultra-quiet operation
        -  Stainless steel fasteners for long life
        -  Carbon / ceramic seals plus
              (1) Buna-N-Seal
        -  Thermally protected
        -  10’ power cord
  • 1-1/2” discharge
  • Pumps solids up to 1/2"
  • Strainer included
  • S2 Series Energy Savings: Average $45* per year
  • 4 Year warranty when purchased from and installed by a contractor, otherwise 3 year

COMPATIBLE SWITCHES:

Tether Float Vertical Float Dual Float
TS VS DFC1
TSC1.5 VSC1.5 DFC1.5
TSC2 VSC2 DFC2



*Based on an average sump pump run time of five minutes per hour for one year. The estimated average of a 1/3 HP shaded pole motor is 9.5 Amps. Average electric cost per-kilowatt-hour is $0.12

Specifications

  S2033 S2050
Motor - HP 1/3 HP 1/2 HP
Flow @ 10 ft. GPH (3 M.) 3,200 GPH 3,600 GPH
Flow @ 10 ft. GPM (3 M.) 53 GPH 60 GPM
Max. Head 23' / 7 m 32’ / 9.8 m
Pump Discharge 1.5" 3.8 cm 1.5" 3.8 cm
Amps. @ 10 Ft. Total Head 5.0 Amps 6.0 Amps
Weight 21.1 lbs. / 9.6 kg 21 lbs. / 9.6 kg
Width 9” / 22.9 cm 9” / 22.9 cm
Depth 6.5” / 16.5 cm 6.5” / 16.5 cm
Height 11.75” / 29.8 cm 11.75” / 29.8 cm

Mix and Match

We want to provide our customers every option possible, so we’ve come up with two ways to order. You can order using our “Mix and Match” method or select a pre-packaged pump with a switch included. This allows you the ability to have not only the quality pump you need but, the features and technology you want to go with it.

Option 1: Mix and Match – Order a pump and a switch as separate items

  • The pumps and switches are purchased as separate items, then combine to complete the system to meets your wants and needs
  • Best way to allow for many options
    • Select a pump, based on capacity, warranty or build materials
      • Example: the S3033-NS, a 5 year warranty, high capacity pump with No Switch
    • Then, select a switch to pair with it based on the features
      • Example: the DFC2, a Dual Float Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts



 Option 2: Pre-Packaged System – Order the pump and switch together in one box

  • Order any pump with the switch already packaged in a single carton, ready for delivery
    • Example: The S2033-VSC2, is a 4 year warranty, all cast iron pump and Vertical Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts

Models Available

Switch Options S2033
1/3 HP Pump
S2050
1/2 HP Pump

NS
Pump, with no Switch


S2033-NS

S2050-NS

DFC1
Dual float switch with standard controller


S2033-DFC1

S2050-DFC1

DFC1.5
Dual float switch with enhanced controller


S2033-DFC1.5

S2050-DFC1.5

DFC2
Dual float switch with deluxe controller


S2033-DFC2

S2050-DFC2
VS
Vertical switch

S2033-VS

S2050-VS
VSC1.5
Vertical switch with enhanced controller

S2033-VSC1.5

S2050-VSC1.5
VSC2
Vertical switch with deluxe controller

S2033-VSC2

S2050-VSC2
TS
Tether switch

S2033-TS

S2050-TS
TSC1.5
Tether switch with enhanced controller

S2033-TSC1.5

S2050-TSC1.5
TSC1.5
Tether switch with enhanced controller

S2033-TSC2

S2050-TSC2

Switch and Controller Comparison

Features Standard Controller
or Switch Only
    DFC1    /   VS    /    TS
Enhanced Controller
DFC1.5 / VSC1.5 / TSC1.5
Deluxe Controller
DFC2 / VSC2 / TSC2
Includes Dual Float Switch Dot Dot Dot
Includes Vertical Switch Dot (Switch only) Dot Dot
Includes Tether Switch Dot (Switch only) Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)


USB Data Port (Ability to remotely
notify which alert has activated or
what maintenance might be needed)

    Dot
Remote Terminal (Ability to remotely
notify of a problem or needed
maintenance)
    Dot
Float switch can be unplugged from
controller for easy installation
  Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds
after the water falls
  Dot Dot
Activates pump weekly to exercise and
extend pump life
  Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   All switches include manual and stainless steel hose clamp

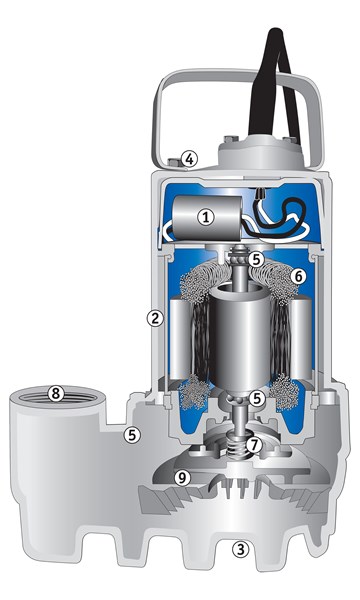

Construction


1.  Permanent split capacitor (PSC) motor increases energy efficiency AC_Pump_cutout_drawing_S2_with_numbers
2.  Cast iron housing
3.  Removable polycarbonate strainer
4.  Stainless steel fasteners won't rust
5.  Upper and lower sealed ball bearings
6.  Water cooled
7.  Carbon ceramic shaft seals plus (1) Buna-N seal
8.  1-1/2" outlet
9.  Polycarbonate impeller
