Tether Switch

  • Available: Tether Switch only (TS), Enhanced (TSC1.5) or Deluxe Controllers (TSC2)
  • Can be used in clear water and sewage applications

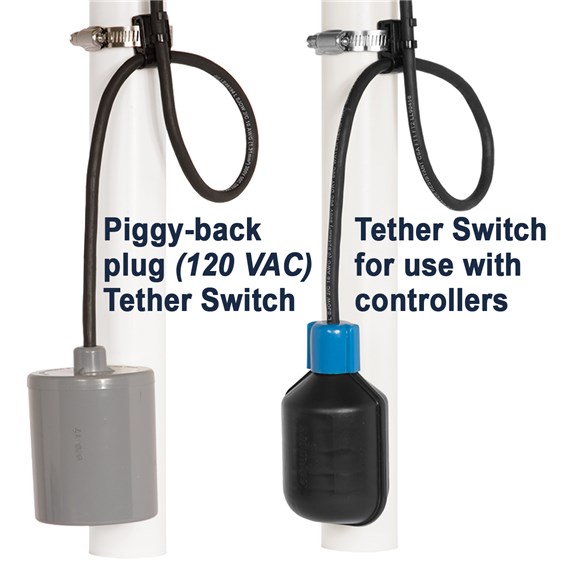

  • Two versions of the vertical switch:

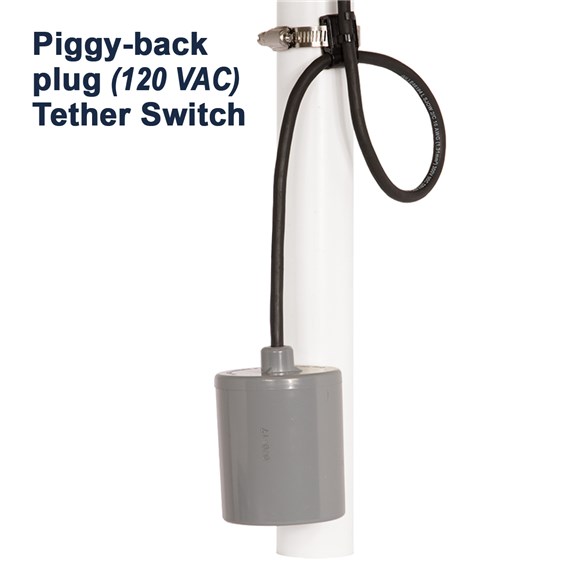

    • Piggy-back plug (120 VAC) version - no controller (TS)
      • Wide angle in order to increase run time
      • Activates pump at about 45° and turn off at about -45°

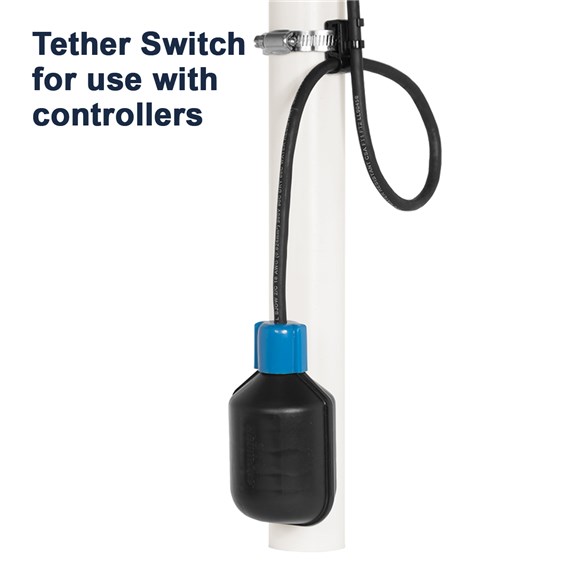

    • Tether switch with controller
      • Available with Enhanced (TSC1.5) and Deluxe controllers (TSC2)
      • Narrow angle in order to reduce run time
      • Run time adjustable
      • Activates pump at about 15° and turn off at about -15°
  • Detachable float switch allows the wire to feed through the pit cover for easy installation and maintenance
  • Mounts to discharge pipe with included stainless steel hose clamp
  • Activation level is adjustable

 PDF_download_icon_v2 Download: Switches and Controllers



COMPATIBLE
CONTROLLERS:
VERTICAL SWITCH
MODEL NO.
Standard Controller TS
Enhanced Controller TSC1.5
Deluxe Controller TSC2





Mix and Match

We want to provide our customers every option possible, so we’ve come up with two ways to order. You can order using our “Mix and Match” method or select a pre-packaged pump with a switch included. This allows you the ability to have not only the quality pump you need but, the features and technology you want to go with it.

Option 1: Mix and Match - Order a pump and a switch as separate items

  • The pumps and switches are purchased as separate items, then combine to complete the system to meets your wants and needs.
  • Best way to allow for many options.
    • Select a pump, based on capacity, warranty or build materials.  For example: the S3033-NS, a 5 year warranty, high capacity pump with No Switch
    • Then, select a switch to pair with it based on the features. Such as: the DFC2, a Dual Float Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts.



 Option 2: A pre-packaged system – Order the pump and switch together in one box.

  • Order any pump with the switch already packaged in a single carton, ready for delivery
    • For example: The S2033-VSC2, is a 4 year warranty, all cast iron pump and Vertical Switch with Deluxe Controller that has lights, alarms and when paired with a PS-WiFi can send text, email or in-app alerts.

Models Available

TS - Tether Switch (No controller)

  • Piggy-back plug (120 VAC) version - no controller (TS)
  • 10’ Float cord

TSC1.5 - Vertical Switch and Enhanced Controller

  • Activates pump weekly to exercise and extend pump life
  • LED confirms controller has power
  • Pump run time is adjustable


TSC2 - Vertical Switch and Deluxe Controller

  • Monitors pump and power conditions and sounds an alarm when problems are detected
  • Visual/audible notification and recommended maintenance remedy
  • Activates pump weekly to exercise and extend pump life
  • Pump run time is adjustable
  • USB Data Port and Remote Terminal connect to external devices such as the PHCC Pro Series Pumps CONNECT modules, home automation systems or other devices for remote notification
  • OPTIONAL High Water Accessory will sound an alarm when the water has reached the high water sensor (High Water Accessory Model No. PS-WS - sold separately)

Switch Comparison

Features Standard Controller
or Switch Only
    DFC1    /   VS    /    TS
Enhanced Controller
DFC1.5 / VSC1.5 / TSC1.5
Deluxe Controller
DFC2 / VSC2 / TSC2
Includes Dual Float Switch Dot Dot Dot
Includes Vertical Switch Dot (Switch only) Dot Dot
Includes Tether Switch Dot (Switch only) Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)


USB Data Port (Ability to remotely
notify which alert has activated or
what maintenance might be needed)

    Dot
Remote Terminal (Ability to remotely
notify of a problem or needed
maintenance)
    Dot
Float switch can be unplugged from
controller for easy installation
  Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds
after the water falls
  Dot Dot
Activates pump weekly to exercise and
extend pump life
  Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   All switches include manual and stainless steel hose clamp
