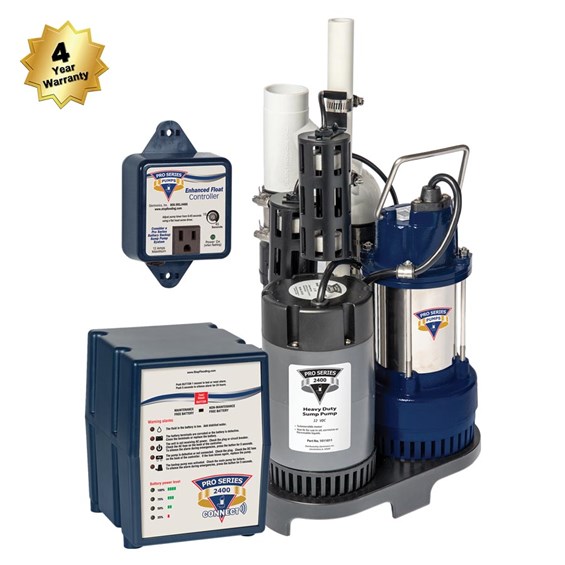

PS-C33_2020_web
Enlarge
PS-C33_2020_web

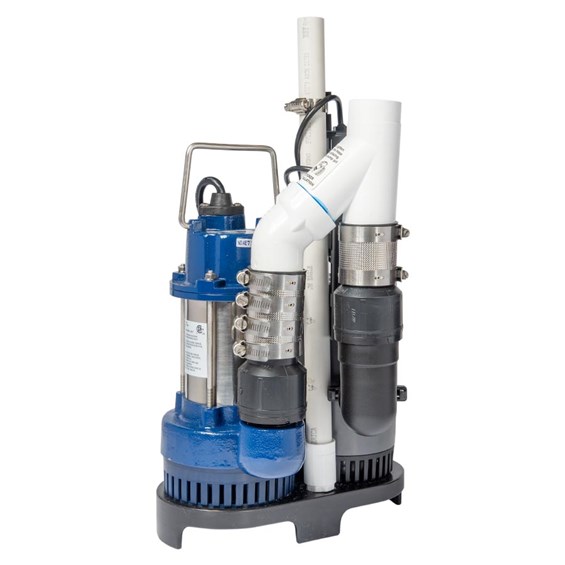

  • PS-C33_2020_back_web

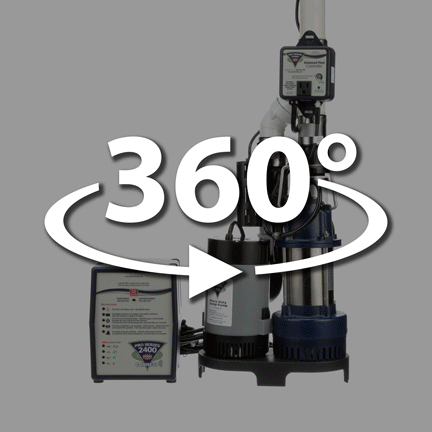

  • Combination Sump Pump PS-C33_360

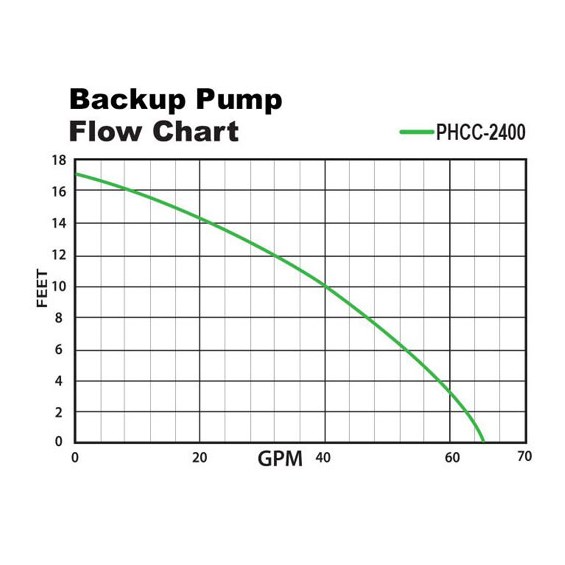

  • Flow Chart 2400

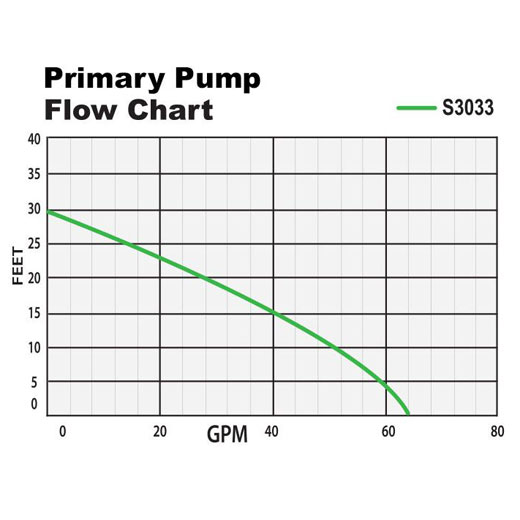

  • Flow Chart S3033
  • PS-C33_2020_web

  • PS-C33_2020_back_web
  • Combination Sump Pump PS-C33_360

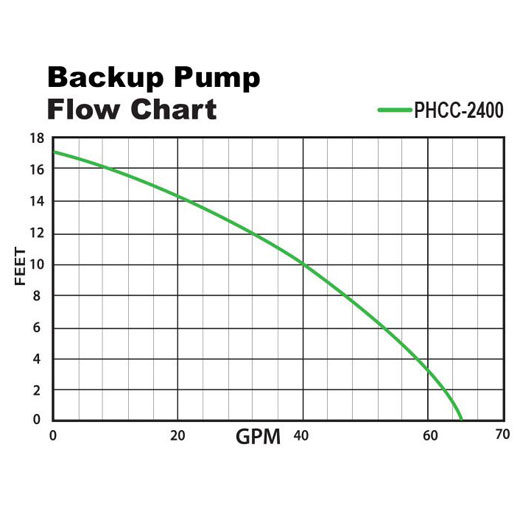

  • Flow Chart 2400

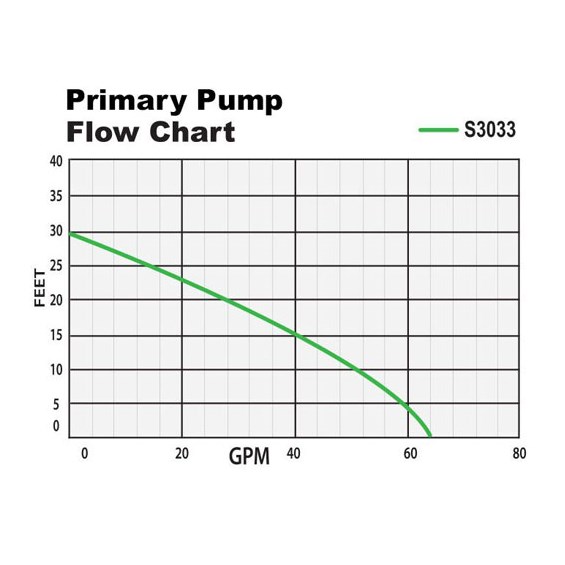

  • Flow Chart S3033
  • PS-C33_2020_web

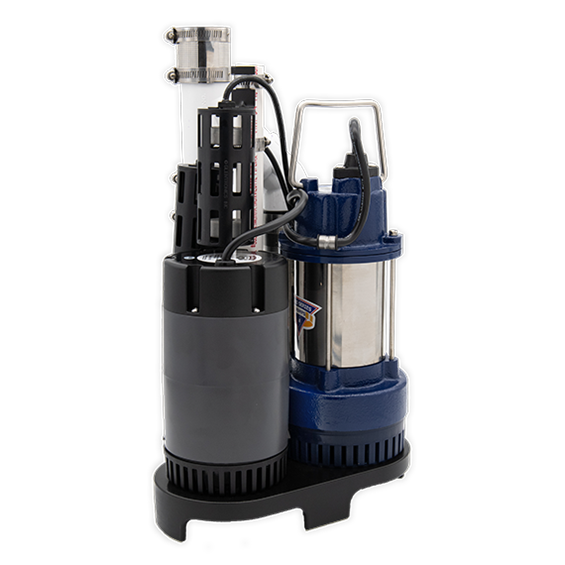

PS-C33 Combination Pumps

Features and Benefits

Model PS-C33
  • Preassembled primary and backup sump pump makes installation quick and easy
  • 3000 GPH at 10 ft. lift (S3033 Primary Pump)
  • 2400 GPH at 10 ft. lift (PHCC-2400 Backup Pump)
  • Backup assists primary pump if excessive amounts of water enter the sump pit
  • Remote-monitoring capability with external Pro Series CONNECT Modules sends real-time alerts
  • USB Data Port and Remote Terminals connect to external devices such as Pro Series CONNECT Modules, home automation systems or other devices for remote notification
  • (2) Caged dual float switches provide dependable activation for each pump
  • Adjustable run time (Primary Pump)
  • System pumps intermittently for days
  • Can run directly on AC power and battery power
  • Automatically switches to battery power when AC fails
  • Recharges battery automatically
  • Designed for use with maintenance or maintenance free batteries
  • Accommodates up to two (2) B-2200 batteries for 100 hours of pumping (Based on 10% duty cycle. Run times may vary based on inflow of water.)
  • 4 Year warranty when purchased from and installed by a contractor, otherwise 3 year

 PDF_download_icon_v2 Download: PS-C33 Combination Brochure

 PDF_download_icon_v2 Download: PS-C33 Manual



Controller Features:

  • Unique monitoring controller detects irregularities of pump and power conditions
  • Sounds an alarm, pinpoints problems and solutions on the control panel
  • Receive notifications about your Pro Series pumps and backup sump pump system while away from home using a Pro Series CONNECT module
  • Alarm can be silenced during a power outage
  • Runs pump weekly to test for proper operation
  • Displays percentage of power remaining in the battery

Specifications

Primary Pump PS-C11 PS-C22 PS-C33
Flow at 10' Head 2,770 GPH 2,770 GPH 3,000 GPH
Max Head 29' / 8.8 m 29' / 8.8 m 30' / 9.1 m
Discharge 1-1/2" 1-1/2" 1-1/2"
Motor HP 1/3 1/3 1/3
Voltage 115 VAC, 60 Hz 115 VAC, 60 Hz 115 VAC, 60 Hz
Amp. draw at 10' 3.8 3.8 4.0
Backup Pump
Flow at 10' Head 1,000 GPH 1,850 GPH 2,400 GPH
Voltage 12 VDC 12 VDC 12 VDC
DC Current 6.5 Amps 10 - 12 Amps 20 Amps

Controller Comparison

  PS-C11 PS-C22 PS-C33
Will sound alarm indicating:
 - Battery needs water Dot Dot Dot
 - Battery is old and needs to be replaced Dot Dot Dot
 - Battery is discharged Dot Dot Dot
 - Cable is loose or terminals are corroded Dot Dot Dot
 - Power, fuse or circuit breaker has failed Dot Dot Dot
 - Pump has been activated; Check the main pump for failure Dot Dot Dot
The alarm can be silenced during a power outage Dot Dot Dot
Automatically test pump weekly   Dot Dot
USB Data Port (Ability to remotely notify which alert has activated or what specific maintenance might be needed)   Dot Dot
Remote Terminal (Ability to remotely notify of a problem or needed maintenance)   Dot Dot
Can accommodate similar standby batteries to extend the run time   Dot Dot
Backup pump runs off AC power as well as battery power     Dot
Displays percentage of power remaining in the battery     Dot

Remote Notification

The Pro Series CONNECT line of pumps can send email or text notifications alerting you to an issue or needed maintenance. Be in the know when you’re on the go!

Notification with the USB Data Port: Plug the Pro Series CONNECT module into your Pro Series 2400 backup system, and the module will act as a gateway to the Internet.

Notification with the Remote Terminal: Connects to a home security, auto dialer, or other dry-contact-based device.

Pumping Time*

  PS-C11 PS-C22 PS-C33
B-1000 50 Hours Not Recommended Not Recommended
B-2200 100 Hours 60 Hours 50 Hours
(Two) B-2200 Not Recommended 120 Hours 100 Hours

Run time based on 10% duty cycle. Run times may vary based on water flow.

* Not Recommended for PHCC-1730 controllers without the Remote Terminal

Construction and Included Components

Primary Pump
  • Permanent Split Capacitor (PSC) motor
  • Upper and lower sealed ball bearings
  • Cast iron/stainless steel housing
  • Stainless steel shaft
  • Dual carbon ceramic shaft seals plus additional Buna N seal
  • Polycarbonate impeller
Backup Pump
  • Non-corrosive ABS housing
  • Stainless steel shaft and fasteners
  • Carbon ceramic seal w/ Buna N seal
  • Non-corrosive fiber filled impeller
  • Dual ball bearings
Float Switch (2) Caged Dual, Micro-Reed Switches
System Dimensions
(W x D x H)
10.0 " x 11.0" x 28.25"
(25.4 x 27.9x 71.6 cm)
Shipping Weight 43.0 lb (19.5 Kg)

Included with System

  • Pre-assembled:
    • Primary pump
    • Backup pump
    • (3) 1½” Standard no hub couplings
    • (2) Standard check valves with hardware
    • Sump Foot - raises and secures both pumps
  • Backup system controller/charger with fluid sensor
  • Primary pump Enhanced controller with caged dual float switch (Model No. DFC1.5)
  • Battery box
