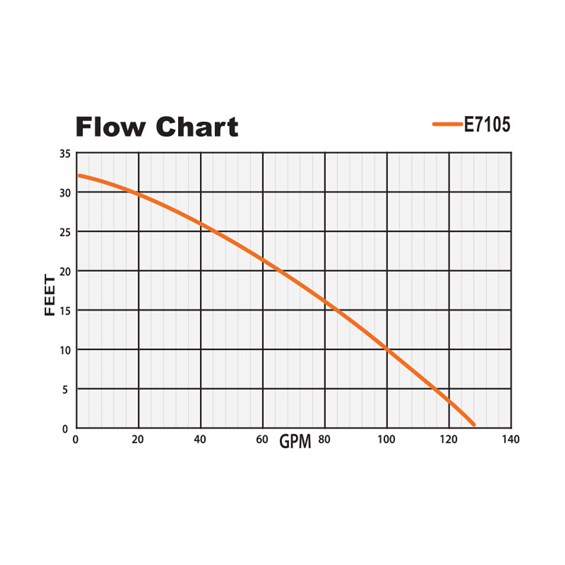

  • Flow Chart E7105
  • E7040 NS
  • PHCC Pro Series E7040 VSC1.5
  • PHCC Pro Series E7040 VSC2
  • Flow Chart E7105
  • E7040 NS

E7105 Sewage Pump


  • 1 HP
  • 6,000 GPH (100 GPM) at 10 ft. lift
  • Cast iron/stainless steel construction
  • Energy efficient permanent split capacitor (PSC) motor
  • Handles 2" solids through a 2" discharge
  • Continuous duty rated
  • Dual carbon/ ceramic seals plus (1) Buna-N-Seal
  • Upper and lower sealed ball bearings
  • Stainless steel fasteners
  • Cast iron impeller
  • 3 Year warranty

 PDF_download_icon_v2 Download: E7105 Sewage Pump Brochure




Vertical Float Tether Float
VSC1.5 TSC1.5


  E7040-NS E7055-NS E7105-NS
Motor HP 4/10 HP 1/2 HP 1 HP
GPM @ 10 ft 74 89 100
GPH @ 10 ft 4440 5340 6000
Max head 22' / 6.7 m 23' / 7.0 m 32' / 9.75 m
Max diameter solids 2” / 5.1 cm 2” / 5.1 cm 2” / 5.1 cm
Discharge 2” NPT / 5.1 cm 2” NPT / 5.1 cm 2” NPT / 5.1 cm
Amps @ 10' 6.3 7.0 10.5
Weight 36 lbs / 16.3 kg 37 lbs / 16.8 kg 41.1 lbs / 18.6 kg
Width 9” / 22.9 cm 9” / 22.9 cm 9” / 22.9 cm
Depth 5.875” / 15 cm 5.875” / 15 cm 5.875” / 15 cm
Height 19” / 48.3 cm 16.5” / 42.3 cm 20” / 50.8 cm

Models Available

E7105 1 HP Pump Alone

  • E7105-NS (No Switch - pump only)

E7105 1 HP Pump with Vertical Switch Options

  • E7105-VS (No Controller - pump and Vertical Switch only)
  • E7105-VSC1.5 (Includes Enhanced Controller with Vertical Float Switch)
  • E7105-VSC2 (Includes Deluxe Controller with Vertical Float Switch)

E7105 1 HP Pump with Tether Switch Options

  • E7105-TS (No Controller - pump and Tether Switch only)
  • E7105-TSC1.5 (Includes Enhanced Controller with Tether Switch)
  • E7105-TSC2 (Includes Deluxe Controller with Tether Switch)

Mix and Match

We want to provide you with the best options for stocking your inventory, so we’ve come up with two ways to order. You can order using our “Mix and Match” method or select a pre-packaged pump with a switch included. “Mix and Match” ordering lets us tailor your order to best fit your business’s needs. This flexibility will benefit both you and your customer.

Option 1: Mix and Match - Order a pump and a switch as separate items

  • Allows you to stock pumps and switches as separate items, then combine and complete the system to meet your customer’s needs
  • Allows you to stock less inventory which saves on product investment
  • Provides you with the product and tools to upgrade the sale

Option 2: Order as a pre-packaged system, includes pump and switch

  • Order any pump with switch already packaged in a single carton, ready for delivery

Switches and Controllers Comparison Chart

Features Switch Only
Enhanced Controller
DFC1.5 / VSC1.5 / TSC1.5
Deluxe Controller
DFC2 / VSC2 / TSC2
Available with Dual Float Switch   Dot Dot
Available with Vertical Switch Dot Dot Dot
Available with Tether Switch Dot Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)

USB Data Port (Ability to remotely notify which alert
has activated or what maintenance might be needed)

Remote Terminal (Ability to remotely notify of a
problem or needed maintenance)
Float switch can be unplugged from controller for
easy installation
  Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds after the water falls   Dot Dot
Activates pump weekly to exercise and extend pump life   Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   Includes: Switch, manual and stainless steel hose clamp


Pump Construction Pump Diagram
1.   Permanent split capacitor (PSC) motor increases energy efficiency AC_pump_drawing_E7040_E7105_Cutout_with_numbers
2.   Heavy duty cast iron/stainless steel housing
3.   Upper and lower sealed ball bearings
4.   Two carbon ceramic shaft seals plus (1) Buna-N seal
5.   2" outlet
6.   Dynamically balanced cast iron impeller
7.   Electroplated steel shaft
8.   Stainless steel fasteners
