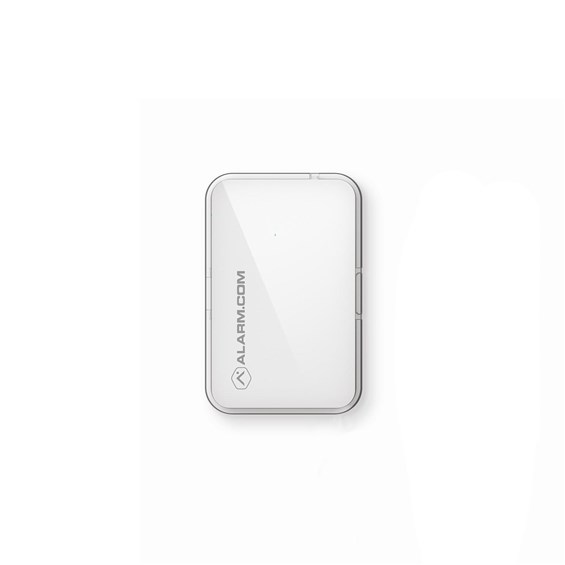

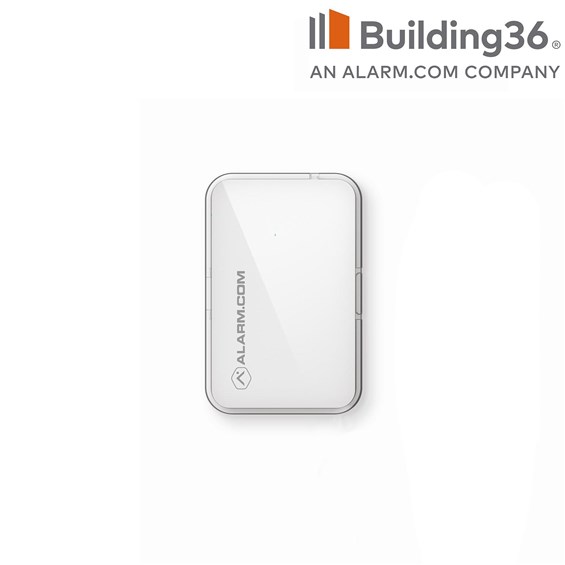

Dry Contact Sensor

  • Connect a Pro Series Pumps CONNECT control box to the Building36 Dry Contact Sensor

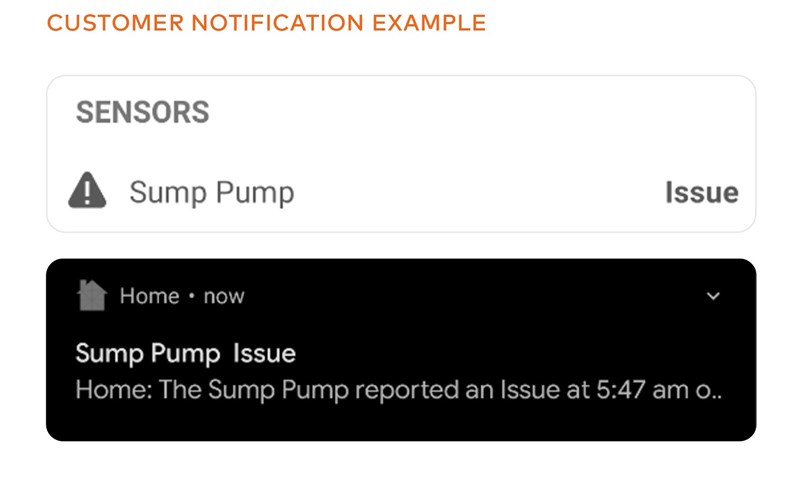

  • Receive Mobile App alerts when an alarm condition is detected
  • Whether at home or on vacation, you gain peace of mind knowing that your pumps are protecting your home from water damage
  • It’s quick and easy to start monitoring your sump pump, backup pump and ejector pumps today


Primary Pump Switch Backup Systems Combo Systems
DFC2 PHCC-1850 PS-C22
VSC2 PHCC-2400 PS-C33


Remote Notification

The PHCC Pro Series CONNECT Line of Pumps have the ability to send email or text notifications when there is an issue or needed maintenance.

Notification with the USB Data Port:

  • With USB data port simply plug/attach the Pro Series CONNECT Module to your Pro Series 2400 Backup system and the module will act as a gateway to the internet
    • Receive specific text or email alerts telling you exactly what is going on in the home

Notification with the Remote Terminal

  • Connects to a home security, auto dialer, or other dry contact based device
    • Receive text or email alerts, notifying you of an issue or needed maintenance

Now, you can ‘be in-the-know when you’re on-the-go’.


Customers and installers can receive notifications when the pump controller detects an issue.

Causes for Alarms

  • Power failure
  • Extended run time
  • Pump or float switch problem
  • Backup pump has been activated
  • Backup battery issues (if applicable)
    • Battery needs water
    • Battery is old and needs replacement
    • Cable is loose or terminals are corroded
    • Fuse is blown (if applicable)






Dry Contact Sensor Installation

The Dry Contact Sensor can be connected to the pump controller on the N.C. and Common terminals after removing the 24VAC isolator from the Dry Contact Sensor.

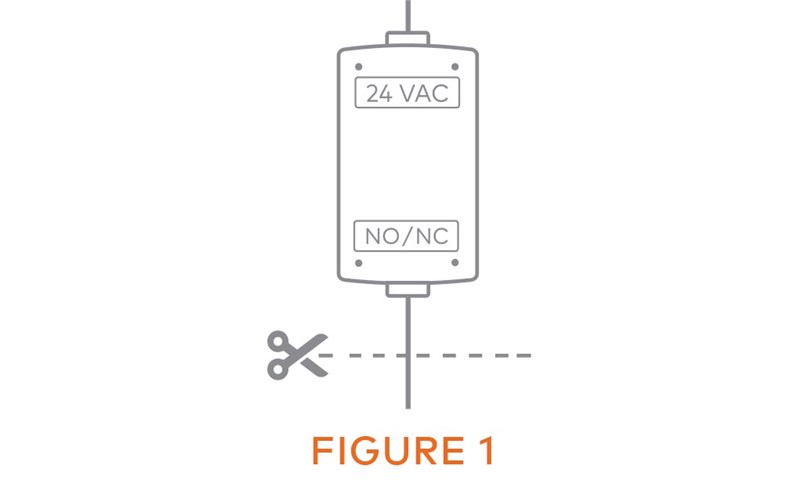

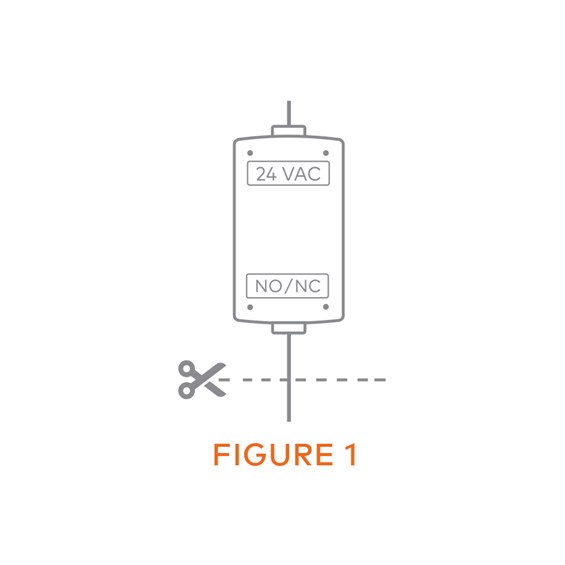

  1. Cut the 24VAC isolator from the sensor (Fig. 1).

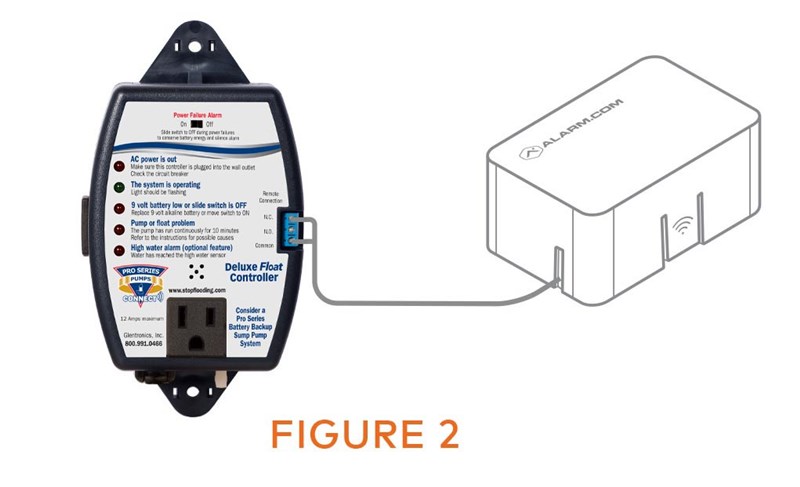

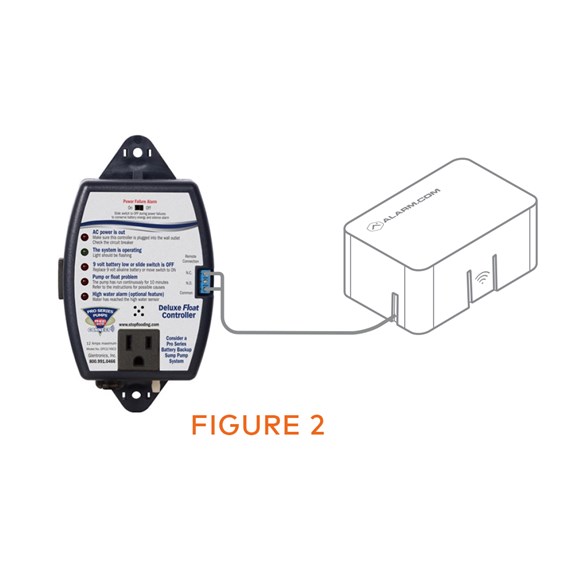

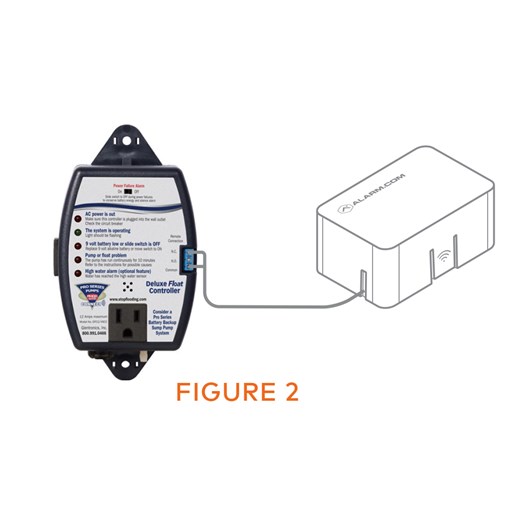

  2. Attach the Dry Contact Sensor wires to the N.C. and Common terminals on the controller (Fig. 2).
  3. Place the Hub into pairing mode.
  4. Remove the battery tab from the Dry Contact Sensor and press the pairing button on the sensor to pair to the Hub.
  5. Mount the sensor in a location that avoids moisture.
  6. Rename the sensor to easily distinguish from the homeowner’s other devices.
    Example: Sump Pump, Sewage Pump or Backup Pump.
B36_GlentronicsIntegration_Figure_1_CRP B36_GlentronicsIntegration_Figure_2_CRP

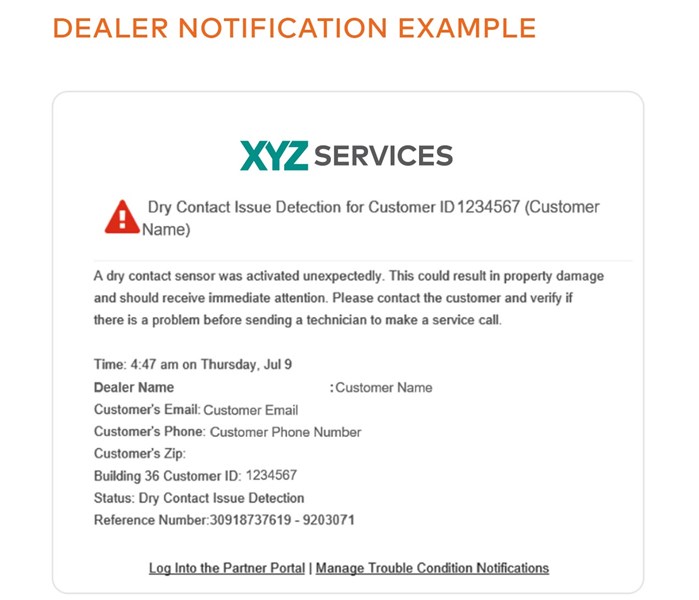

Setup notifications to be received by the installer:

Use the Partner Portal to set up contacts who will receive real-time alerts when a homeowner’s pump has registered an alarm. Be proactive by contacting the customer to set up a service call.

  1. From the home page, hover over “My Business” and select “Business Intelligence”.
  2. On the right-hand side, select “Trouble Conditions Alerts”.
  3. Scroll through the notifications and make sure the “Real-Time Alert” under “Dry Contact Issue Detection” is checked.
