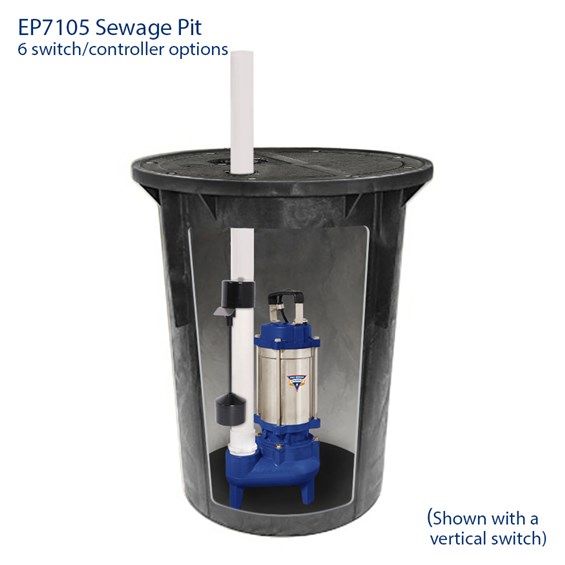

EP7105 Sewage Pit

Features

  • Pre-assembled for easy installation
  • 1 HP energy efficient sewage pump
  • 6,000 GPH (100 GPM) at 10 ft. lift
  • Cast iron/stainless steel pump construction
  • Pump rests in a formed mold which prevents torqueing
  • 6 Float switch/controller options
  • Pro Series Pumps sewage pit includes:
    • Sewage pump and switch
    • 18” x 30” sewage pit with rubber inlet
    • Lid with flanges, inspection panel and cord seal
    • All gaskets and stainless-steel hardware
    • Discharge piping from the pump to the lid

COMPATIBLE SWITCHES:

Vertical Float Tether Float
VS TS
VSC1.5 TSC1.5
VSC2 TSC2
DVSA-VS

Models Available

EP7105 1 HP Sewage Pit with Vertical Switch Options

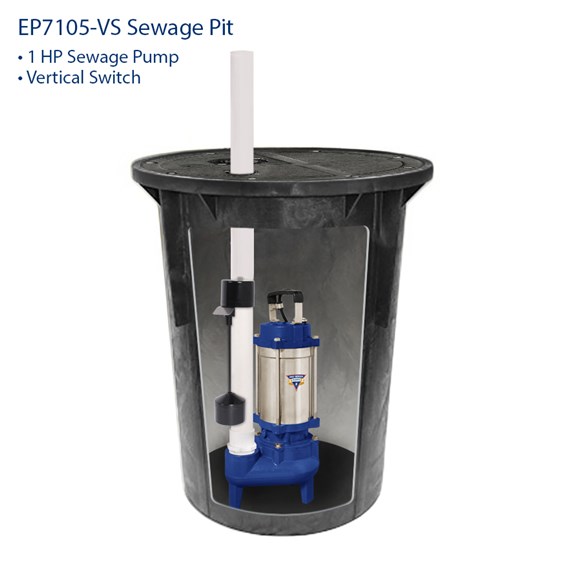

  • EP7105-VS (No Controller - pump and Vertical Switch only)

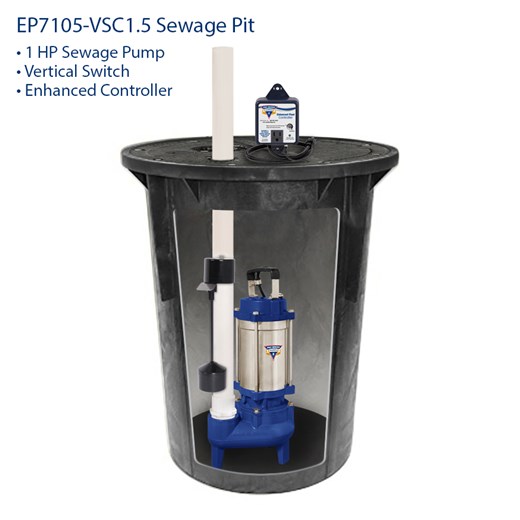

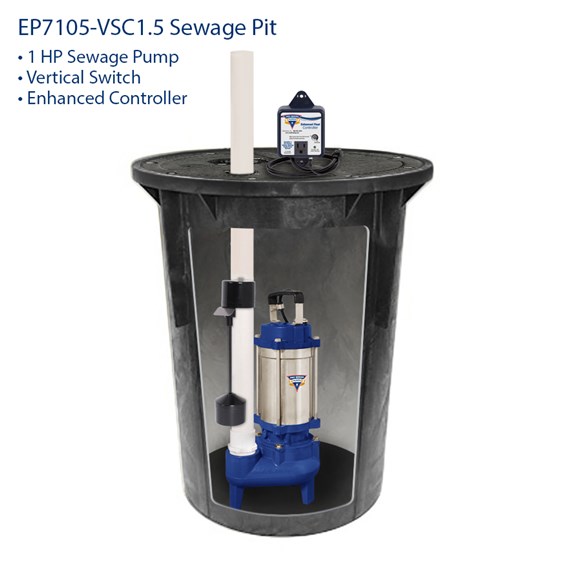

  • EP7105-VSC1.5 (Includes Enhanced Controller with Vertical Float Switch)

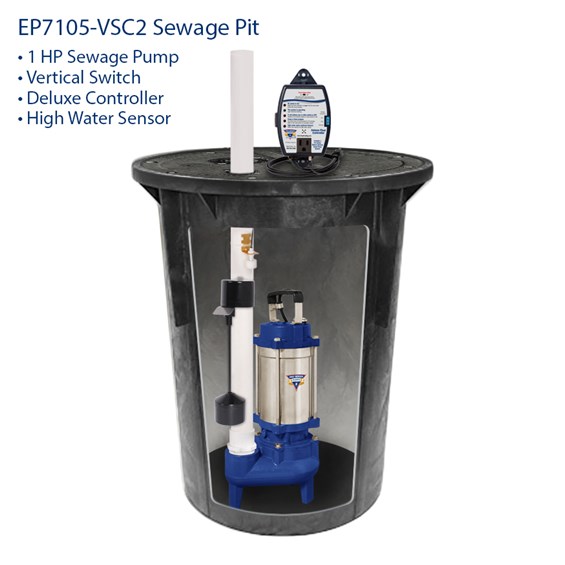

  • EP7105-VSC2 (Includes Deluxe Controller with Vertical Float Switch and High Water Sensor)

EP7105 1 HP Sewage Pit with Tether Switch Options

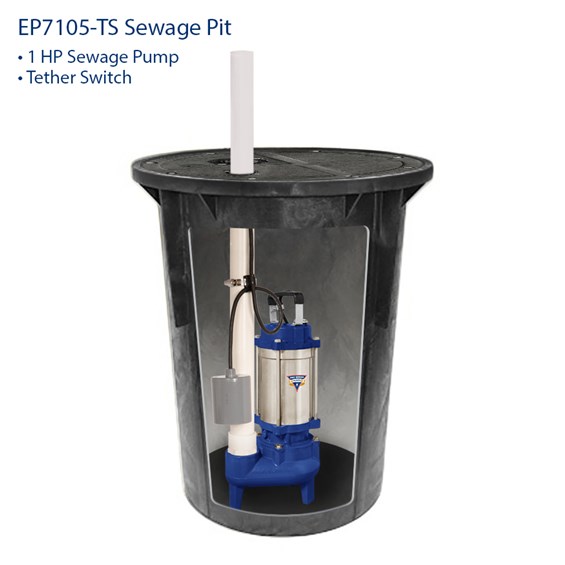

  • EP7105-TS (No Controller - pump and Tether Switch only)

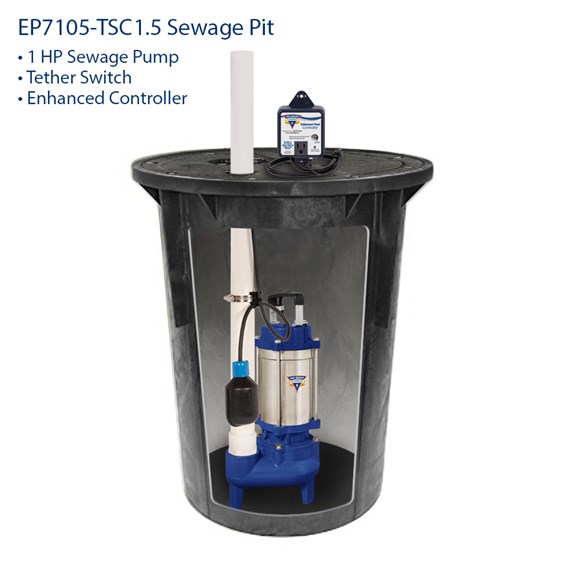

  • EP7105-TSC1.5 (Includes Enhanced Controller with Tether Switch)

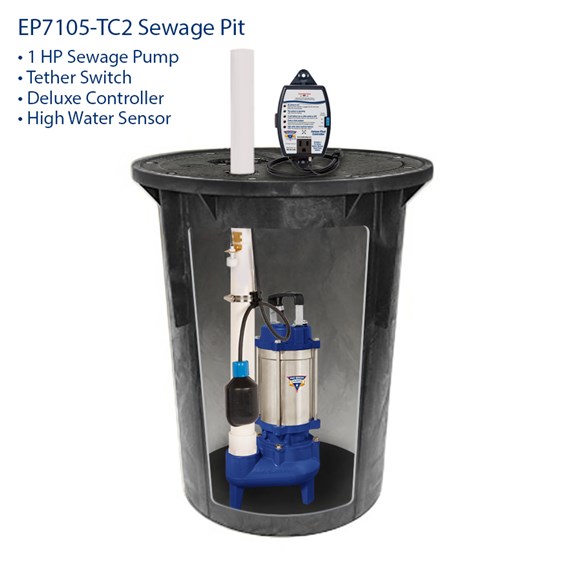

  • EP7105-TSC2 (Includes Deluxe Controller with Tether Switch and High Water Sensor)



Switches and Controllers Comparison Chart

Features Switch Only
VS / TS
Enhanced Controller
VSC1.5 / TSC1.5
Deluxe Controller
VSC2 / TSC2
Available with Vertical Switch Dot Dot Dot
Available with Tether Switch Dot Dot Dot
Sounds an alarm and alerts when:
      AC power has failed     Dot
      Pump or float problem is detected     Dot
      9V battery is low or slide switch is off     Dot
Remote Notification Connections:
(Allows for connection to external devices)


USB Data Port (Ability to remotely notify which alert
has activated or what maintenance might be needed)

    Dot
Remote Terminal (Ability to remotely notify of a
problem or needed maintenance)
    Dot
Float switch can be unplugged from controller for
easy installation
  Dot Dot
System operating light (flashes)   Dot Dot
Adjustable run time from 5-45 seconds after the water falls   Dot Dot
Activates pump weekly to exercise and extend pump life   Dot Dot
Universal controller mounting tabs   Dot Dot
2' power cord   Dot
4' power cord     Dot
10' float switch cord Dot Dot Dot
Piggy-back plug Dot Dot Dot
                   Includes: Switch, manual and stainless steel hose clamp
