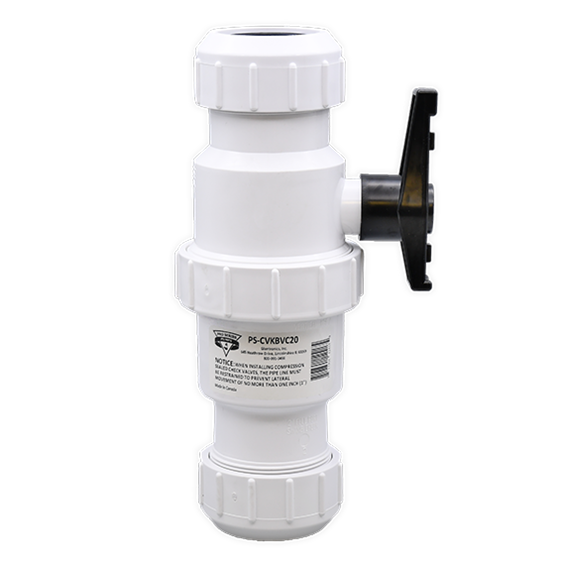

2" PVC Klunkless Compression Check and Ball Valve

Model PS-CVKBVC20
  • Fits perfectly when space is tight
  • Super-quiet 2-inch PVC compression check and ball valve
  • Created for sump, sewage and grinder pump applications
  • Full-port design means less friction and faster flow
  • Angled seat minimizes water hammer
  • Designed for vertical (solid-free liquid applications) and horizontal (solid/semisolid applications) installations
Specifications
  • Size: 2 in.
  • Inlet Size: 2 in.
  • Outlet Size: 2 in.
  • Design: Klunkless/Quiet
  • Inlet Connection: Compression
  • Primary Material: PVC
  • Maximum Working Pressure: 150 PSI @ 72°F
  • Compatible with Schedule 40 and 80 pipe
Dimensions
  • Width: 6.10 in.
  • Height: 4.40 in.
  • Length: 12.15 in.
  • Weight: 2.84 lb.
Certifications
  • ASTM D1784
  • No Lead
