Check Valves

PS-CVC20_570x570
Enlarge
PS-CVC20_570x570
  • There are no alternate images available for this product.

  •

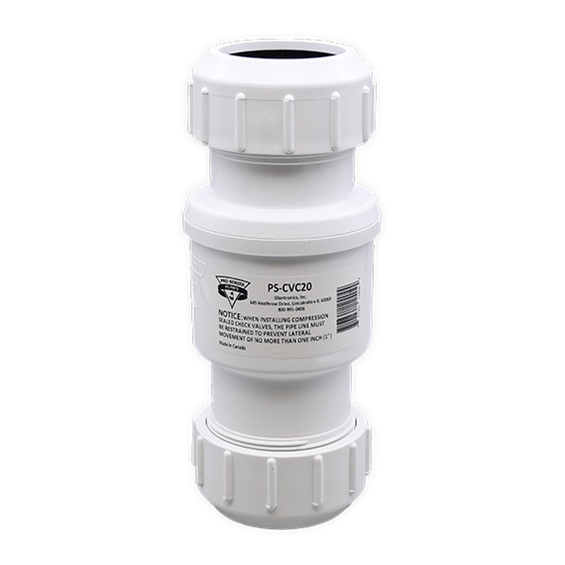

2" PVC Compression Check Valve

Model PS-CVC20
  • 2-in. swing compression check valve made from high-impact PVC
  • Ideal for sump, sewage and grinder pump applications
  • Full-port design means less friction and faster flow
  • Angled seat provides quiet operation by minimizing water hammer
  • Designed for vertical (solid-free liquid applications) and horizontal (solid/semisolid applications) installations

Where to buy

Specifications
  • Size: 2 in.
  • Design: Standard
  • Connection Type: Compression
  • Primary Material: PVC
  • Maximum Working Pressure: 150 PSI @ 72°F
  • Compatible with Schedule 40 and 80 pipe
Dimensions
  • Width:  3.80 in.
  • Height:  3.80 in.
  • Length:  9.20 in.
  • Weight:  1.57 lb.
Certifications
  • ASTM D1784
  • No Lead
